Input Patch

Some REST-API use cases for select different Inputs

When switching between Inputs, there are multiple approaches valid:

Changing the Input Patch itself

Example Configuration for CH1, CH2, CH4, CH7, switch between Dante Input 1-4 and Dante Input 21-24

HTTP Put a full json object containing all affected Channels into the http://${IP}/rest-api/settings/channel/ path

Advantage: Using the bulk endpoint /settings/channel/ allows you to patch multiple channels in a single HTTP call, which is more efficient than making individual calls for each channel. This reduces network overhead and ensures all channels are updated atomically.

To determine the source_id of the desired Interfaces, perform an HTTP OPTION call to http://${IP}/rest-api/settings/channel/1/dsp/patch' to get a list of available interfaces.

[
  {
    "channel_id": 1,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 1
        }
      ]
    }
  },
  {
    "channel_id": 2,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 2
        }
      ]
    }
  },
  {
    "channel_id": 4,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 3
        }
      ]
    }
  },
  {
    "channel_id": 7,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 4
        }
      ]
    }
  }
]

[
  {
    "channel_id": 1,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 21,
          "gain": 0.0,
          "mute": false
        }
      ]
    }
  },
  {
    "channel_id": 2,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 22,
          "gain": 0.0,
          "mute": false
        }
      ]
    }
  },
  {
    "channel_id": 4,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 23,
          "gain": 0.0,
          "mute": false
        }
      ]
    }
  },
  {
    "channel_id": 7,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "source_id": 4,
          "channel": 24,
          "gain": 0.0,
          "mute": false
        }
      ]
    }
  }
]

Patching Channels Individually

Alternatively, you can patch each channel individually by making separate HTTP PUT calls to each channel’s endpoint: http://${IP}/rest-api/settings/channel/{channel_id}/

This approach allows you to update channels one at a time, which can be useful when you need to patch channels conditionally or handle errors per channel.

curl -X 'PUT' http://${IP}/rest-api/settings/channel/1/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 1,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 1
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/2/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 2,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 2
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/4/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 4,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 3
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/7/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 7,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 4
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/1/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 1,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 21,
        "gain": 0.0,
        "mute": false
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/2/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 2,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 22,
        "gain": 0.0,
        "mute": false
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/4/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 4,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 23,
        "gain": 0.0,
        "mute": false
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/7/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 7,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "source_id": 4,
        "channel": 24,
        "gain": 0.0,
        "mute": false
      }
    ]
  }
}'

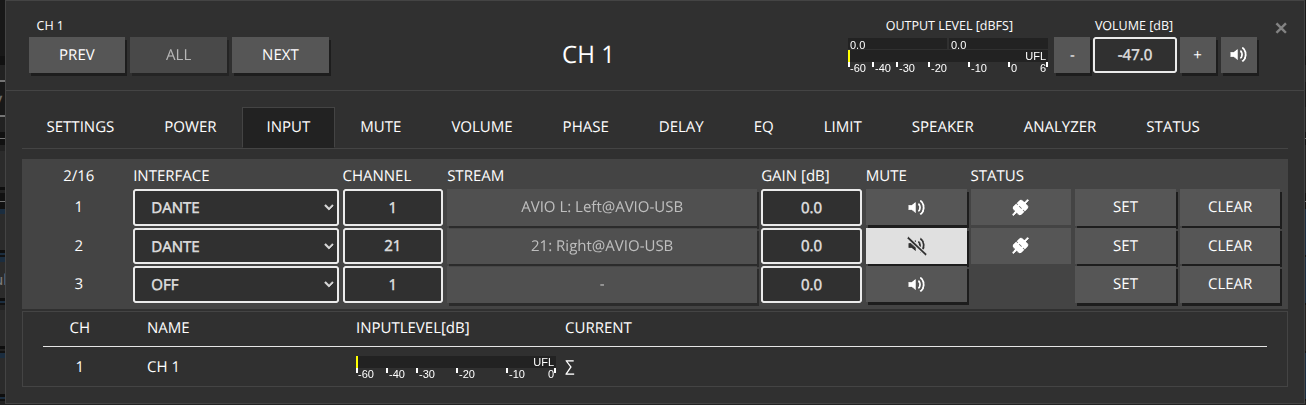

Toggle Mute between channels

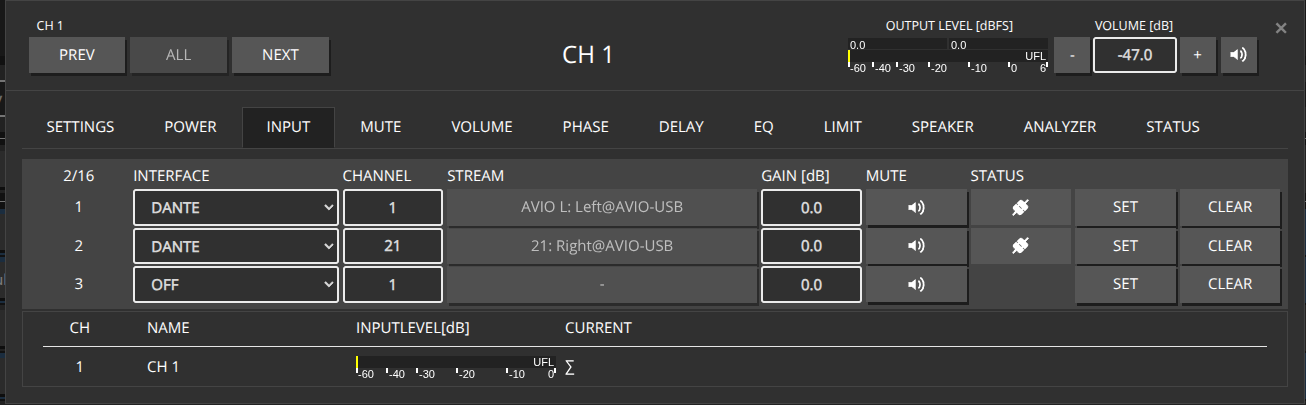

Assuming we’ve already patched our desired Inputs for each channel on Slot 1 and 2

When inputs are already patched, you can toggle the mute state between different patch slots (e.g., Slot 1 and Slot 2) by only updating the mute flag in the patch object. This is more efficient than repatching the entire input configuration.

HTTP Put a JSON object containing all affected Channels into the http://${IP}/rest-api/settings/channel/ path, specifying only the patch_id and mute flag for each patch slot.

[
  {
    "channel_id": 1,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": true
        },
        {
          "patch_id": 2,
          "mute": false
        }
      ]
    }
  },
  {
    "channel_id": 2,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": true
        },
        {
          "patch_id": 2,
          "mute": false
        }
      ]
    }
  },
  {
    "channel_id": 4,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": true
        },
        {
          "patch_id": 2,
          "mute": false
        }
      ]
    }
  },
  {
    "channel_id": 7,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": true
        },
        {
          "patch_id": 2,
          "mute": false
        }
      ]
    }
  }
]

[
  {
    "channel_id": 1,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": false
        },
        {
          "patch_id": 2,
          "mute": true
        }
      ]
    }
  },
  {
    "channel_id": 2,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": false
        },
        {
          "patch_id": 2,
          "mute": true
        }
      ]
    }
  },
  {
    "channel_id": 4,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": false
        },
        {
          "patch_id": 2,
          "mute": true
        }
      ]
    }
  },
  {
    "channel_id": 7,
    "dsp": {
      "patch": [
        {
          "patch_id": 1,
          "mute": false
        },
        {
          "patch_id": 2,
          "mute": true
        }
      ]
    }
  }
]

Toggling Mute on Individual Channels

You can also toggle mute on individual channels by making separate HTTP PUT calls to each channel’s endpoint: http://${IP}/rest-api/settings/channel/{channel_id}/

curl -X 'PUT' http://${IP}/rest-api/settings/channel/1/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 1,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "mute": true
      },
      {
        "patch_id": 2,
        "mute": false
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/2/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 2,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "mute": true
      },
      {
        "patch_id": 2,
        "mute": false
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/4/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 4,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "mute": true
      },
      {
        "patch_id": 2,
        "mute": false
      }
    ]
  }
}'

curl -X 'PUT' http://${IP}/rest-api/settings/channel/7/ \
-H 'Content-Type: application/json' \
-H 'token: f4005bf8507999192162d989d5a60823' \
-d '{
  "channel_id": 7,
  "dsp": {
    "patch": [
      {
        "patch_id": 1,
        "mute": true
      },
      {
        "patch_id": 2,
        "mute": false
      }
    ]
  }
}'
